ICESNOW 1.5ton/day Flake Ice Evaporator/drum for Seafood Processing

Short Description:

1. Based on working conditions and level requirements for ice, we can completely accomplish our demands by adopting different metal.

2. With precision welding and surface treatment, make highly efficient heat conduction, high strength, that Icesnow flake ice evaporators are durable that have a long lifespan.

Send email to us

Product Detail

Product Tags

3. Adopting the internally-scraping ice making mode, the ice blade scraps ice within inner wall while the evaporator itself remains not moving. It reduces the loss of energy as much as possible and normally guarantees the supply of refrigerant as well as no leaking.

4. Stainless steel ice scrapper of one-step forming and precision processing, serves a very long time of high scrapping performance. It makes our ice flaker outstanding in ice-making industry.

OEM/ODM

Produced in our factory entirely.

Icesnow Ice System is an expert of machine Developing & Building

Optional Applications of Single Evaporator Drum

For fresh water(Daily capacity: 0.2T ~40T)

On land for seawater(Daily capacity: 0.2T ~40T)

On boat for seawater(Daily capacity: 1T ~40T)

Tech. information

Model	GMS-15KA
Daily output(T/24HR)	1.5 T
Necessary Refrigerating capacity	9.7KW
Rated Voltage	380V/50Hz/3P
Reducer motor power	0.18KW
Water pump power	0.014KW
Water Inlet/Drain pipe	1/2"
Dimensions(mm)	1080600993
weight	194 KGS

Standard Working Conditions (best daily output)

Ambient temp.	25 ℃
Inlet water	18 ℃
Evaporating Temp.	-20 ℃
Condensing Temp.	40 ℃
Refrigeration	R404a, R22, R507a, R717
Power	3P/380V~420V/50HZ/60HZ, or your local 3-phases Voltage/Hz

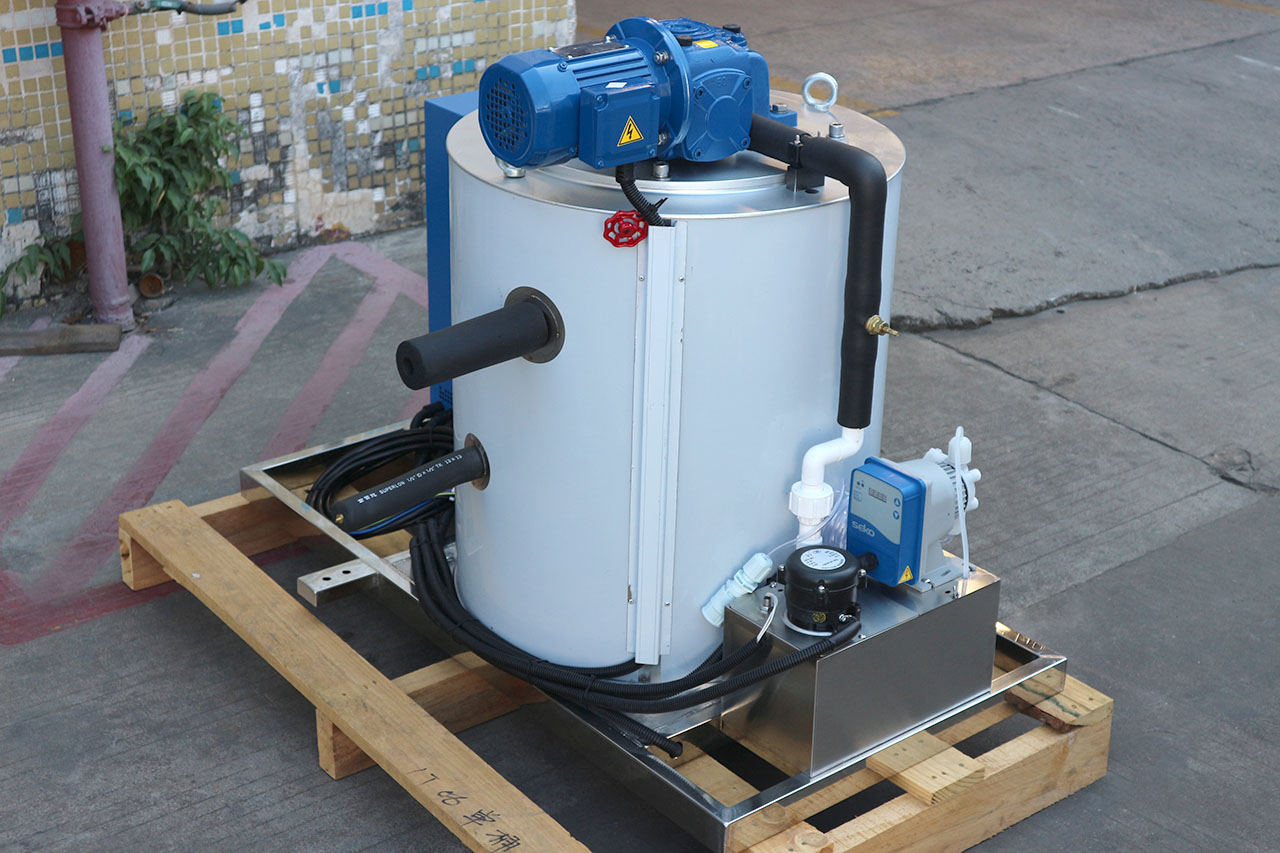

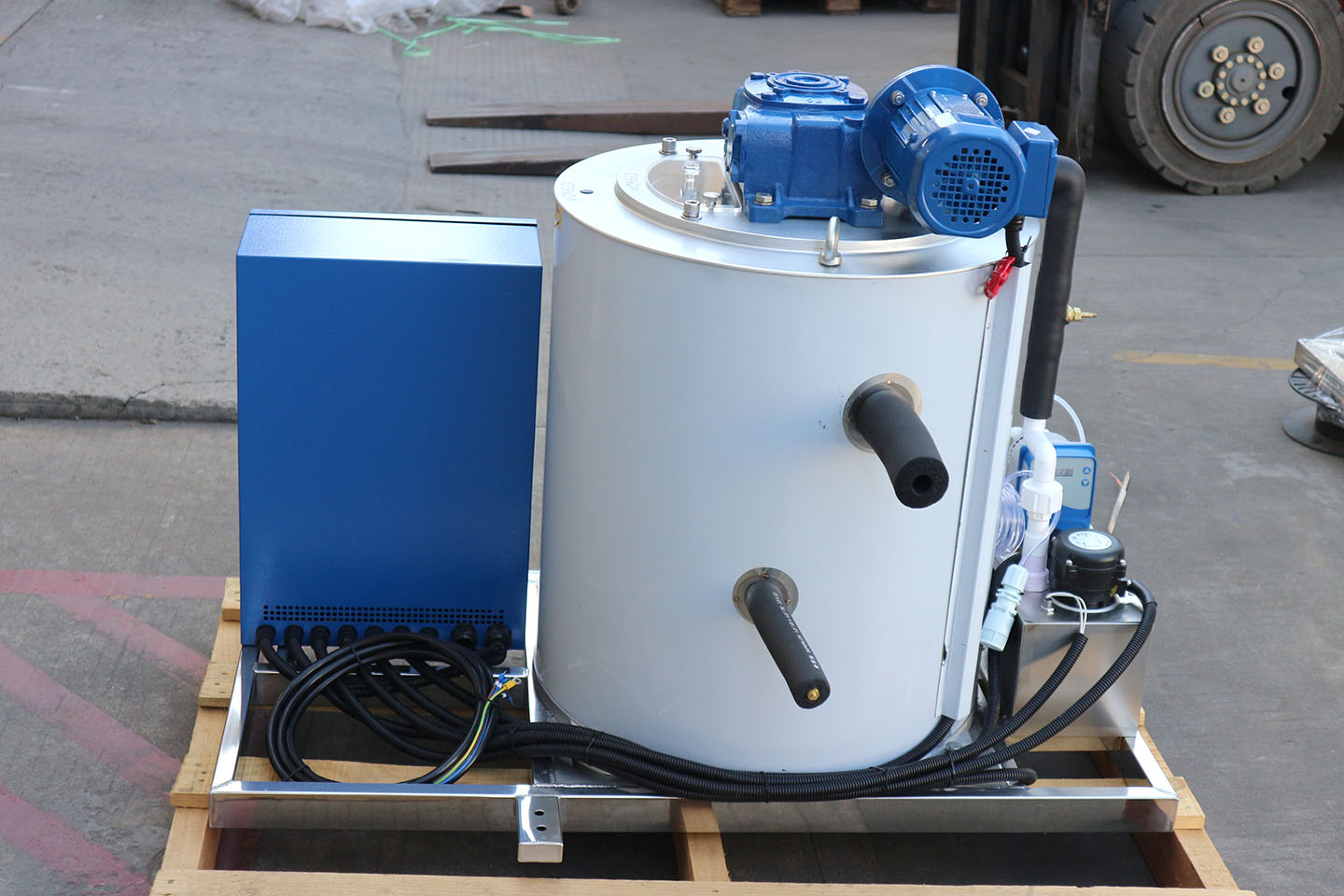

Product pictures

Why Choose Us

Geographic advantage :

We located at Shenzhen city where owns convenient transportation and import & export business. Developed economy, high popularity in the world.

Product advantage :

(1) Technical team. We have 18 years experienced technical team in refrigeration industry, which contains Production, After-sales service and Research.

(2) Ice Making Machine Parts. Evaporator are all produced by our company , we can control all the production process and make sure steady quality, improve the competition.

(3) The other parts of Refrigeration, Electric, Mechanical all take the famous brands domestic and overseas.Which is much better for keeping products much more good quality and competition.

1. Warranty: 18 months

2. Overseas after-sales service

3. We got a number of experienced experts who engaged in refrigeration and ice machine for many years.

4. Icesnow Ice Flaker Evaporators are purely handmade; more importantly is all done by us.

5. All machines adopt environmental protection refrigerant R404a, R22, R507, R717

Transaction Information

OEM/ODM	YES
PACKING CONTENTS	Machinery unit, User Manual, Ice bin (Optional), Cooling system, Wooden plate
PRICE TERMS	EXW/FOB SHENZHEN, CIF, C&F...
PAYMENT TERMS	TT, LC, Western union
LEAD TIME	5~30 days, upon your machine capacity
Install	Our Engineer can install for you in your area
WARRANTY	18 Months

FAQ

Q1: What are the payment terms?

A: We usually accept payment by T/T, L/C.

Normally, we accept 30% Deposit and 70% balance paid before delivery.

Q2: Can any of the products be custom imprinted?

A: If you need to print your company logo on the products and that is available to be customized. Or if you have your own designed idea and that will be our honor to customize for you.

Q3: How to ensure that I received the machine undamaged?

A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!

Q4: Do I need to install the ice machine by myself?

A: For small ice machine, we ship it as a whole unit. So you just need to prepare power and water to run the machine.

For some larger ice machine plant, we need to keep some components separate for shipping convenience. But no worries about that. An installation brochure will be sent to you,it's very easy to install the machine.

Q5: What is the warranty for ice making machine?

A: 18 months after B/L date. Any failure occurred within this period due to our responsibility, we'll supply you the spare parts for free and permanent technical support &consultation all life long for ice making machines.
