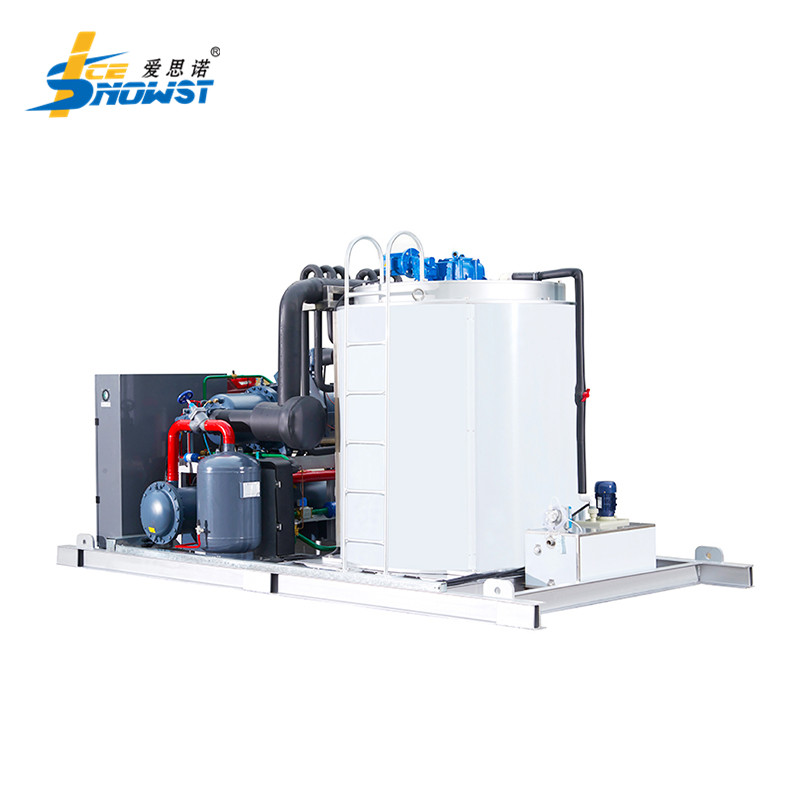

ICESNOW 20Ton/day Ice Flake Maker Machine for fish/shrimp/food processing
● Strictly manufactured evaporator and ice cutter to ensure the long lifespan
● Design available for water lacking areas to use sea water to produce ice.
● With a rake system you can achieve automatic producing.
● Low temperature: ice temperature -8 degree
● Dry ice, good shape, no caked and sanitary
● Flake Ice shape with excellent cooling performance
● No sharp edges, so it no hurt the cooling products
● 1~2 mm thickness, no need to crush and can use at any time
1. Flake Ice: Dry, pure, powder-less, not easy to block, its thickness is about 1.8mm~2.2mm, without edges or corners which will can product the cooling food, fish, seafood and other products.
2. Microcomputer Intelligent Control: the machine is using PLC Control System with world famous brand components. Meanwhile it can protect the machine when there are water shortage, ice full, high/low pressure alarm, and motor reversal.

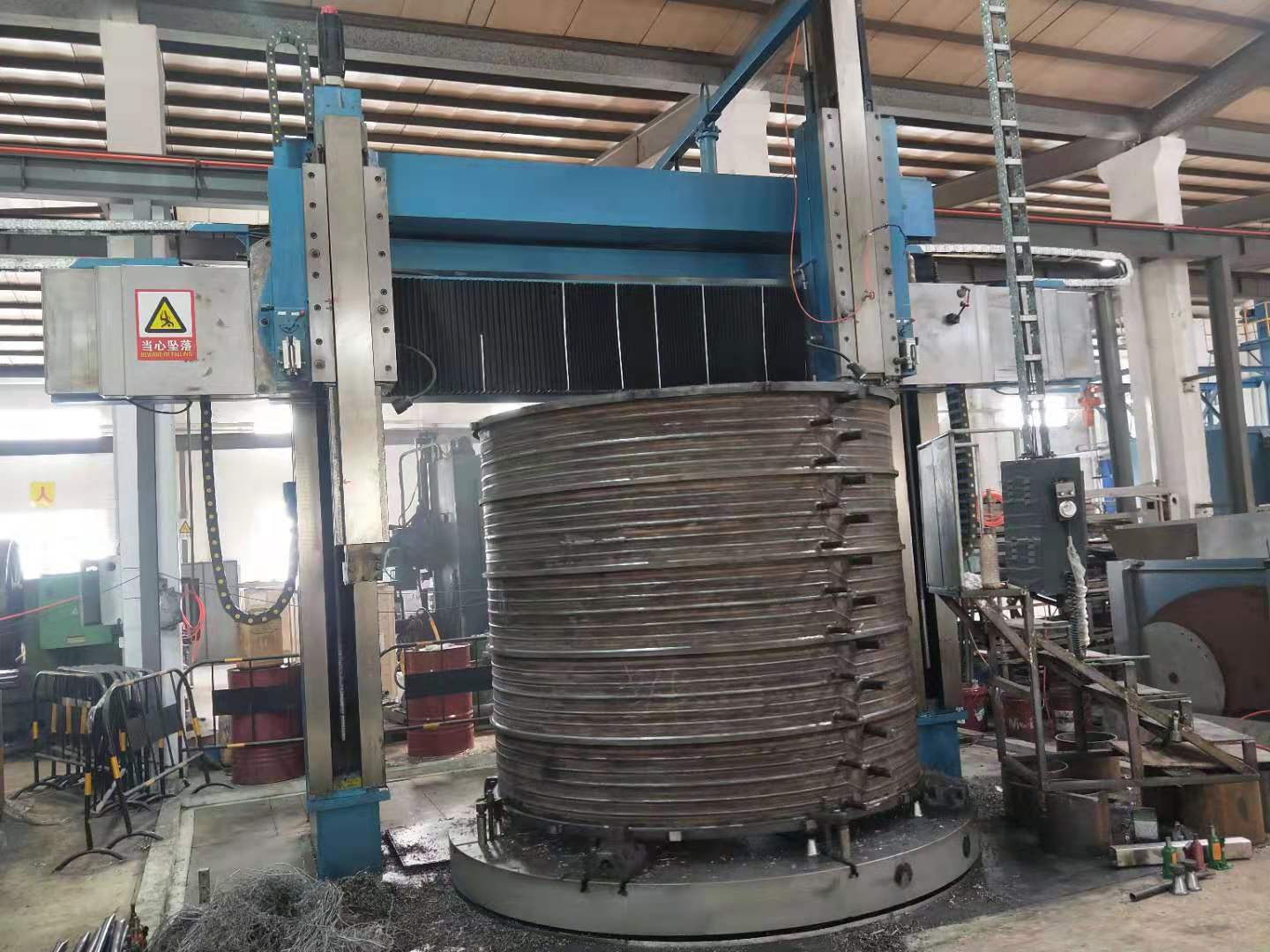

3. Evaporator Drum: Use Stainless Steel material or Carbon Steel Chrominum. The scratch-style of inside machine ensures constant running at the lowest power consumption.
| Name | Technical Data | Name | Technical Data |
| Ice production | 20ton/day | Cooling tower power | 1.5KW |
| Refrigeration capacity | 176KW | Water pump power of cooling tower | 5.5KW |
| Evaporating temp. | -20℃ | Standard Power | 3P-380V-50Hz |
| Condensing Temp. | 40℃ | Inlet water pressure | 0.1Mpa－0.5Mpa |
| Total Power | 84kw | Refrigerant | R404A |
| Compressor Power | 76KW | Flake ice Temp. | -5℃ |
| Reducer Power | 0.75KW | Feeding water tube size | 1" |
| Water pump Power | 0.37KW | Dimension of flake ice machine | 4440×2174×2211mm |
| Brine Pump | 0.012KW | Ice storage room capacity | 10Ton |
| Net weight | 3210kg | Dimension of ice storage room | 4000×4000×2000mm |
A. Installation for ice machine:
1. Installing by the user: we will test and install the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2.Installing by Icesnow engineers:
(a) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user should provide accommodation and round-trip ticket for our engineer.
(b) Before our engineers’ arrival, the installation place, electricity, water and installation tools should be prepared. Meanwhile, we will provide you a Tool List with the machine when delivery.
(c) 1~ 2 workers are required to assist the installation for big project.
B. Warranty:
1. 24 months warranty after delivery.
2. Professional after-sales department to provide 24/7 technical support, all complaints should be replied within 24 hours.
3. Over 20 engineers available to service machinery overseas.
4. Free spare parts replacement within warranty period
