ICESNOW 30T/day Tube Ice Machine/Ice Tube Maker with Competitive price

Short Description:

Icesnow Series tube Ice Machine have two types: air cooled or water cooled type.

The daily capacity ranges from 1000kg to 100tons in 24 hours(Or we can custom made as per your requests).

Product Detail

Product Tags

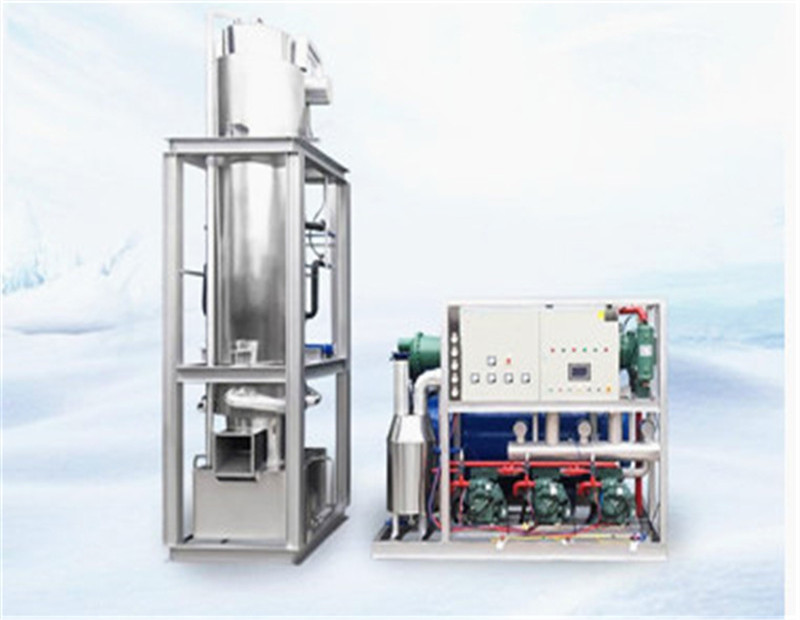

Icesnow tube ice machine structure and ice making theory:

Icesnow series tube ice machine is a type ice machine, which produces cylinder shape ice with a hole in the middle; it adopts flooded evaporator model, which improves ice making efficiency and capacity. Meanwhile, compact structure design can save installation space. Ice thickness and hollow part size can be adjusted according to customer requirements. Under PLC program control system to work automatically, the machine has high capacity, low-power consumption and minimal maintenance.

Product Details

Large Capacity

Icesnow is one of the top manufacturers in the world which is able to produce large capacity (up to 30 tons /day) tube ice machine4

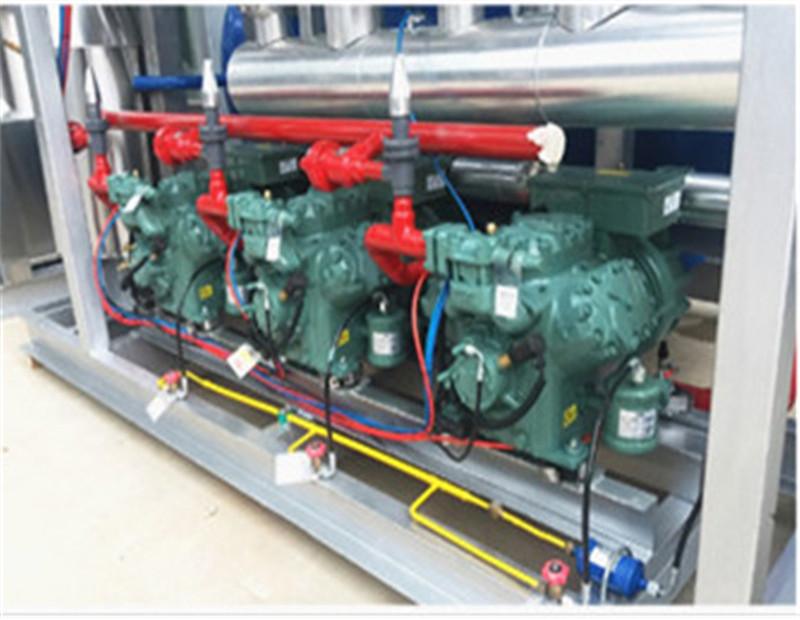

Parallel Compressor Designs

Our R &D team designed special parallel compressor system, compressor is precisely controlled.

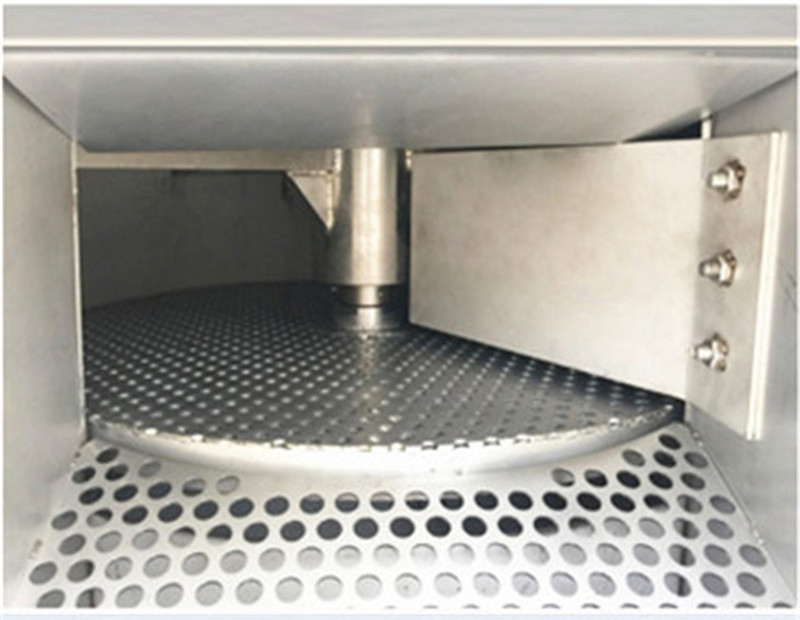

Ice Cutter

The ice cutting procedure is carefully designed; the new design ice cutter makes less crashed ice.

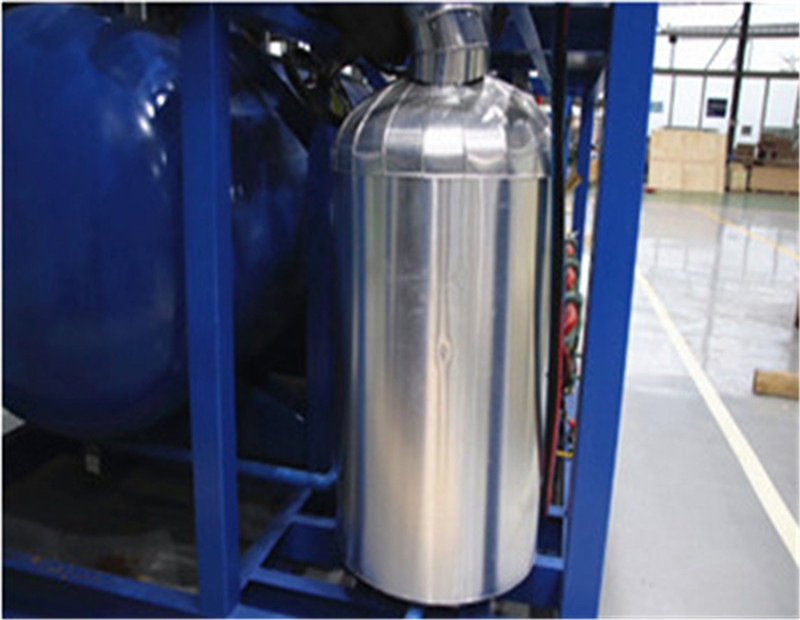

Insulated Gas-liquid Separatorv

It is used to protect the compressor from liquid slugging. and we enhanced the efficiency by using better insulated material to cover it.

Technical parameter

Model		ISN-TB20		ISN-TB30	ISN-TB50	ISN-TB100	ISN-TB150	ISN-TB200	ISN-TB300
Capacity (Tons/24hrs)		2		3	5	10	15	20	30
Refrigerant		R22/R404a/R507
Compressor Brand		Bitzer/ Hanbell
Cooling Way		Air Cooling	Air/Water Cooling				Water Cooling
Compressor Power		9	14(12)		28	46(44)	78(68)	102(88)	156(132)
Ice Cutter Motor		0.37	0.55		0.75	1.1	2.2	2.2	2.2
Power of Circulating Water Pump		0.37	0.55		0.75	1.5	2.2	2.2	2*1.5
Power of Water Cooling Pump			1.5		2.2	4	4	5.5	7.5
Cooling Tower Motor			0.55		0.75	1.5	1.5	1.5	2.2
Ice Machine Size	L (mm)	1650	1660/1700		1900	2320/1450	2450/1500	2800/1600	3500/1700
	W (mm)	1250	1000/1400		1100	1160/1200	1820/1300	2300/1354	2300/1700
	H (mm)	2250	2200/2430		2430	1905/2900	1520/4100	2100/4537	2400/6150

Power supply: 380V/50Hz(60Hz)/3P; 220V(230V)/50Hz/1P; 220V/60Hz/3P(1P); 415V/50Hz/3P;

440V/60Hz/3P.

* Standard conditions: water temperature: 25℃;ambient temperature: 45℃;condensing temperature: 40℃.

* Ice making capacity would be changed depending on installation place, refrigerator’s freezing capability, or surrounding usage environment such as outside temperature.

Main Components

Item	Name of Components	Brand Name	Original Country
1	Compressor	BITZER/HANBELL	Germany/Taiwan
2	Ice Maker Evaporator	ICESNOW	China
3	air cooled condenser	ICESNOW
4	Refrigeration components	DANFOSS/CASTAL	Denmark/Italy
5	PLC Program control	SIEMENS	Germany
6	Electrical components	LG (LS)	South Korea

Icesnow Tube Ice Machine Features

(1) The ice tube looks like hollow cylinder. Tube ice outer diameter is 22mm, 28mm, 34mm, 40mm; tube ice length:30mm, 35mm, 40mm, 45mm, 50mm. The inner diameter can be adjusted according to the ice making time. Usually it’s between 5mm-10mm in diameter. If you need completely solid ice, we also can customize it for you.

(2) The mainframe adopts SUS304 stainless steel. It can put the food directly into the production room which cover a small area, low production cost, high frozen efficiency, save energy, short installation period and easy to operate.

(3) The ice is quite thick and transparent, beautiful, long storage, not easy to melt, fine permeability.

(4) Evaporator uses stainless steel & PU foam insulation, tunnels are insulated to save energy and good looking.

(5) Automatic laser welding to make the welding work nice and no leakage, ensured the low fault rate.

(6) Unique ice harvesting way to make the process quick and low shock, more efficient and safer.

(7) Able to match the stainless steel conveyor and ice bin, and hand or automatic package system.

(8) Fully auto system ice plant solution provided.

(9) Main application: daily using, vegetable fresh-keeping, pelagic fishery fresh-keeping, chemical processing, building projects and other places need to use ice.
