ICESNOW 5T Cube Ice Maker – Commercial Ice Machine

Short Description:

● The CUBE ICENOW 5T Cube Ice Maker is a professional grade commercial ice machine that is perfect for any business or home. It is designed to produce up to 5 tons of cube ice every 24 hours, making it ideal for large-scale applications.

● The machine is equipped with a powerful compressor and an advanced refrigeration system, ensuring that the ice produced is of a consistent quality.

● The machine also features an intuitive LCD control panel, allowing users to easily adjust settings and monitor performance. Additionally, the machine is built with a sturdy stainless steel construction, ensuring long-term durability and performance.

Model Number: BY-50K

Power Supply: 380V/50Hz/3P

Material: SUS304 Stainless Steel

Delivery Time: 30 working days

Send email to us

Product Detail

Product Tags

Main Features

1. Our machines are equipped with a state-of-the-art PLC control system that regulates the ice making cycle, ensuring our ice machines are easy to operate while saving water and electricity. You don't have to worry about constantly tweaking settings because the system will do it for you, reducing your workload and increasing your efficiency.

2. Our ice machines are made of corrosion-resistant and durable high-quality stainless steel, which ensures that your machine will last for a long time. Independent one-piece structure, compact and concise design, easy to clean and maintain.

3. We understand that different businesses have different needs, which is why we offer different models of ice machines so you can choose the one that is best for your business. Our ice machines include cheap ice machines, transparent ice machines, commercial ice machines, industrial ice machines, industrial ice machines, industrial ice machines, and generous ice machines.

Product Decription:

1 .Whole processing is made by vertical lathe to ensure the precision up to 2 ounces;

2. Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.

3. Be designed and produced with standard low-temperature pressure vessel manufacturing process, including surface treatment, heat treatment, gas-tight test, tensile & compression strength test, etc.

4. Ice blade: made of SUS304 material seamless steel tube and formed through only one time process. It's durable.

5. Perfect in food cooling: Flake ice Is type of dry and crispy Ice, it hardly forms any shape edges. In food cooling process, this nature has made It the best material for cooling, it can reduce the possibility of damage to food to the lowest rate.

Product Specification:

Name	Technical Data
Ice production	5ton/24h
Refrigeration capacity	43.5KW
Evaporating temp.	-12℃
Condensing Temp.	40℃
Ambient Temp.	28℃
Inlet water Temp.	23℃
Total Power	21.3kw
Cooling tower pimp input Power	1.5KW
Cooling tower fan input power	0.37KW
Compressor input Power	18.8KW
Reducer input Power	1.1KW
Ice making pump Power	0.75KW
Standard Power	3P-380V-50Hz
Inlet water pressure	0.1Mpa－0.5Mpa
Refrigerant	R404A
Standard dimension of cube ice	22*22mm
Water Consumption	0.15m³/h
Feeding water tube size	1"
Net weight	1200kg
Dimension of cube ice machine	3000mm×1850mm×2000mm

Product Advantage:

1. Large Capacity: different capacity from 1ton/day to 100tons/day. Its production is stable and can reach 90%-95% even in summer. When the ambient temp is lower than 20ºC, input water temp is lower than 25ºC, its production can reach 100%-130%.

2. Safe and Sanitary: Reasonable design for the frame and structure and water system with SUS304 ensure the ice cube sanitary for human consumption.

3. Lower Power Consumption: Greatly save energy, only 75~80KW*H are consumed to produce one-ton ice; when the ambient temp is lower than 23C, it just consumes 70-85 KWH/Ton, compared with other small ice cube maker (normally 150-165 KWH/Ton), its energy saving rate reaches more than 30%.

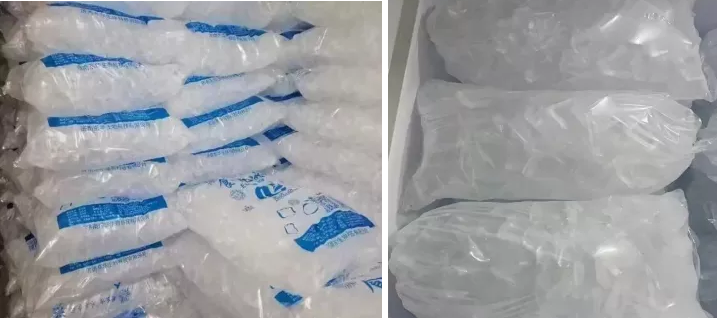

4. Labor Saving Design: Special ice outlet. Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary, meanwhile, it is matched with ice packing system to package the ice with plastic bags.

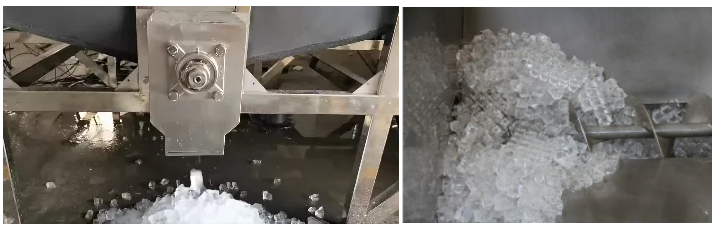

Ice Outlet: Pedal Switch Controlling, easier for ice cube packing without the hand touching the ice cubes
All Ice cubes can be separated into individual cubes with Icesnow screw design.

FAQ

1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.

2. What should I do if some parts broken?
please do not worry, we have 24 months warranty except wear parts. You can also buy parts from us after 24 months.

3. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.

4. Could you send your engineer from China to install the machines?

Yes, we could send you enigneer from China to install your machine, you will be responsible for the accommodation and the installation cost.

5. How to ensure product quality and after-sales service?
We have CE, ISO quality certificate, and SGS authentication.
