ICESNOW 10t/day Tube Ice Machine with low power consumption

Short Description:

Icesnow tube ice machine structure and ice making theory:

Icesnow series tube ice machine is a type ice machine, which produces cylinder shape ice with a hole in the middle; it adopts flooded evaporator model, which improves ice making efficiency and capacity. Meanwhile, compact structure design can save installation space. Ice thickness and hollow part size can be adjusted according to customer requirements. Under PLC program control system to work automatically, the machine has high capacity, low-power consumption and minimal maintenance.

Send email to us

Product Detail

Product Tags

Technical data of tube ice machine

Name	Technical Data	Name	Technical Data
Ice production	10ton/day	Cooling mode	water cooled
Refrigeration capacity	70KW	Standard Power	3P-380V-50Hz
Evaporating temp.	-15℃	Ice tube diameter	Φ22mm/28mm/35mm
Condensing Temp.	40℃	Ice length	30 ~ 45MM
Total Power	36.75kw	tube ice weight density	500~550kg/m3
Compressor Power	30.4KW	Evaporator type	Stainless steel seamless steel pipe
Ice cutter Power	1.1KW	Ice tube material	SUS304 stainless steel
Water pump Power	1.5KW	Water tank material	SUS304 stainless steel
Cooling tower power	1.5KW	Ice cutting blade material	SUS304 stainless steel
Water pump power of cooling tower	2.25KW	Dimension of compressor unit	230016001950mm
Refrigerant gas	R404A/R22	Dimension of tube ice evaporator	145011002922mm

Icesnow Tube Ice Machine Features

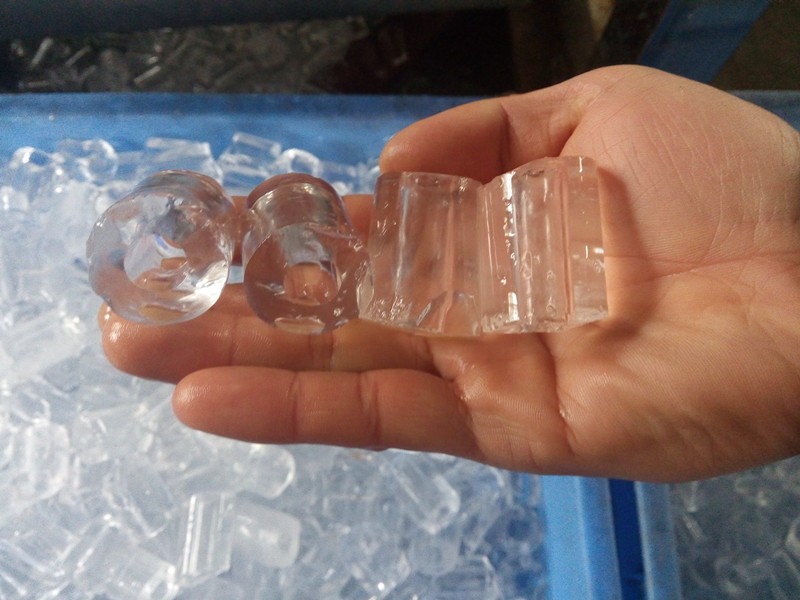

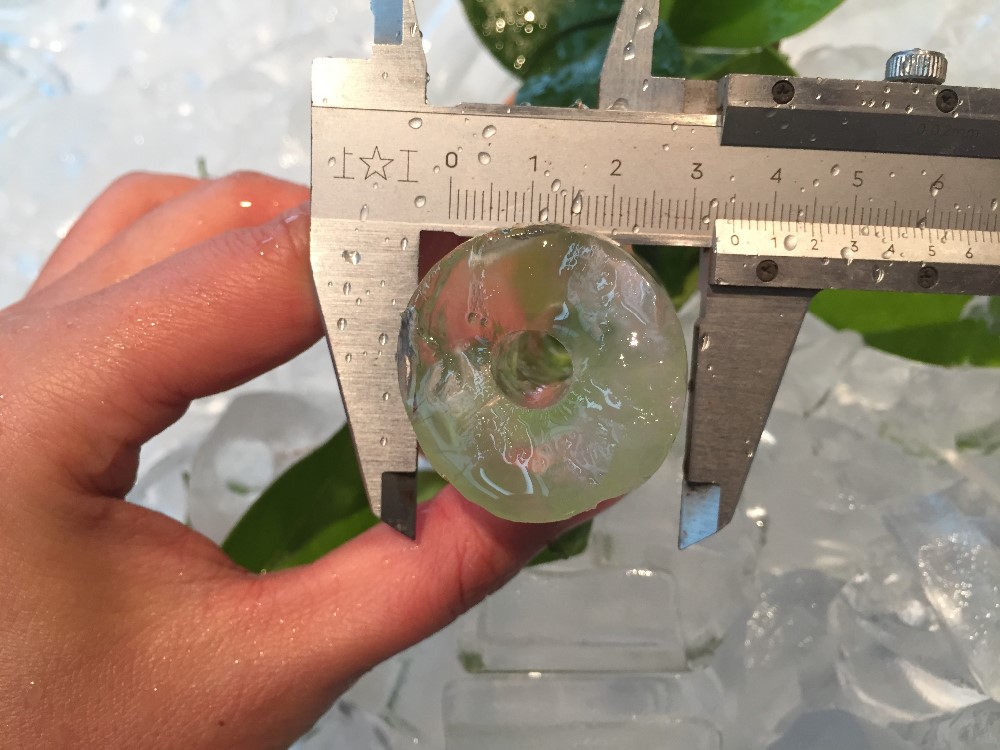

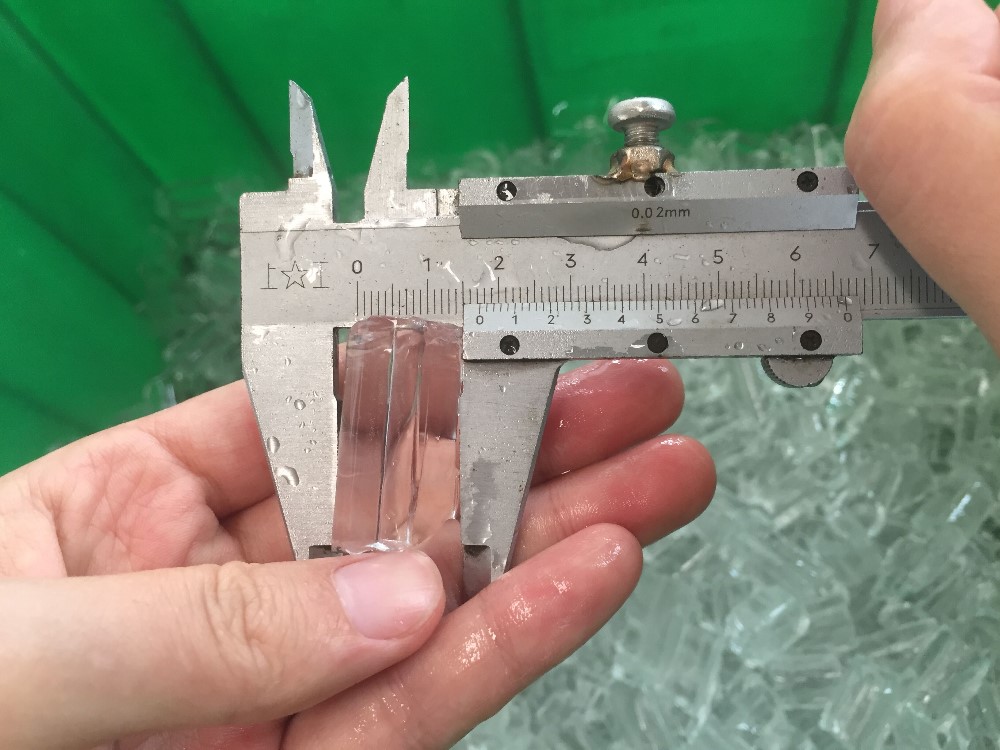

(1). The ice tube looks like hollow cylinder. Tube ice outer diameter is 22mm, 28mm, 34mm, 40mm; tube ice length:30mm, 35mm, 40mm, 45mm, 50mm. The inner diameter can be adjusted according to the ice making time. Usually it’s between 5mm-10mm in diameter. If you need completely solid ice, we also can customize it for you.

(2). The mainframe adopts SUS304 stainless steel. It can put the food directly into the production room which cover a small area, low production cost, high frozen efficiency, save energy, short installation period and easy to operate.

(3). The ice is quite thick and transparent, beautiful, long storage, not easy to melt, fine permeability.

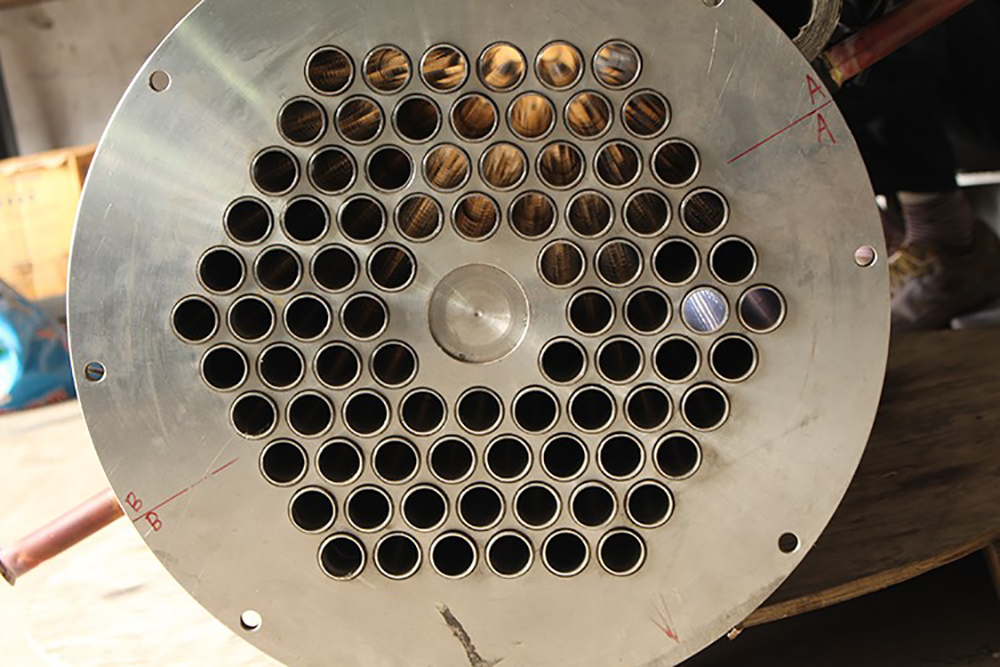

(4). Evaporator uses stainless steel & PU foam insulation, tunnels are insulated to save energy and good looking.

(5). Automatic laser welding to make the welding work nice and no leakage, ensured the low fault rate.

(6). Unique ice harvesting way to make the process quick and low shock, more efficient and safer.

(7). Able to match the stainless steel conveyor and ice bin, and hand or automatic package system.

(8). Fully auto system ice plant solution provided.

(9). Main application: daily using, vegetable fresh-keeping, pelagic fishery fresh-keeping, chemical processing, building projects and other places need to use ice.

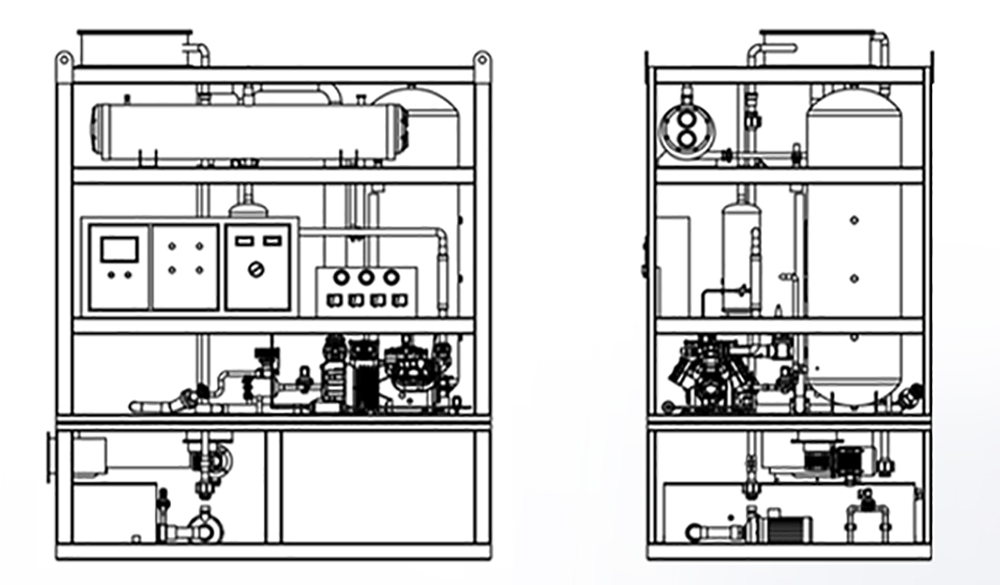

1. Integrated design, easy to maintain and transport

2. Advanced tube ice evaporator and refrigeration systems ensure its long using life and ice quality.

3. Advanced water circulation systems, ensure the ice quality, purity and transparent

4. Fully automatic production system, and labor saving, efficient

5. Two ways heat exchange system, high efficiency,simple&safe operation.

6. Self-design, Self-production, Optimize every processing works, make the machine a perfect performance

7. All the components are adopted from professional suppliers, result in excellent efficiency and stable running.

Tube Ice

Crystal Ice: food-grade, preferable in market in bars, restaurants, hotels etc.

Optional tube ice size: meet different requirement in the market.

External diameter	Standard length	Freezing time/circle
16mm	25mm	14minutes
22mm	30mm	16minutes
28mm	35mm	18minutes
34mm	45mm	22minutes
40mm	55mm	25minutes

The ICESNOW team has used more than 20years of experience in rfrigeation and ice making to continuously innovate products to achieve higher eficiency, more stable operation, smoother ice removal andice production.
